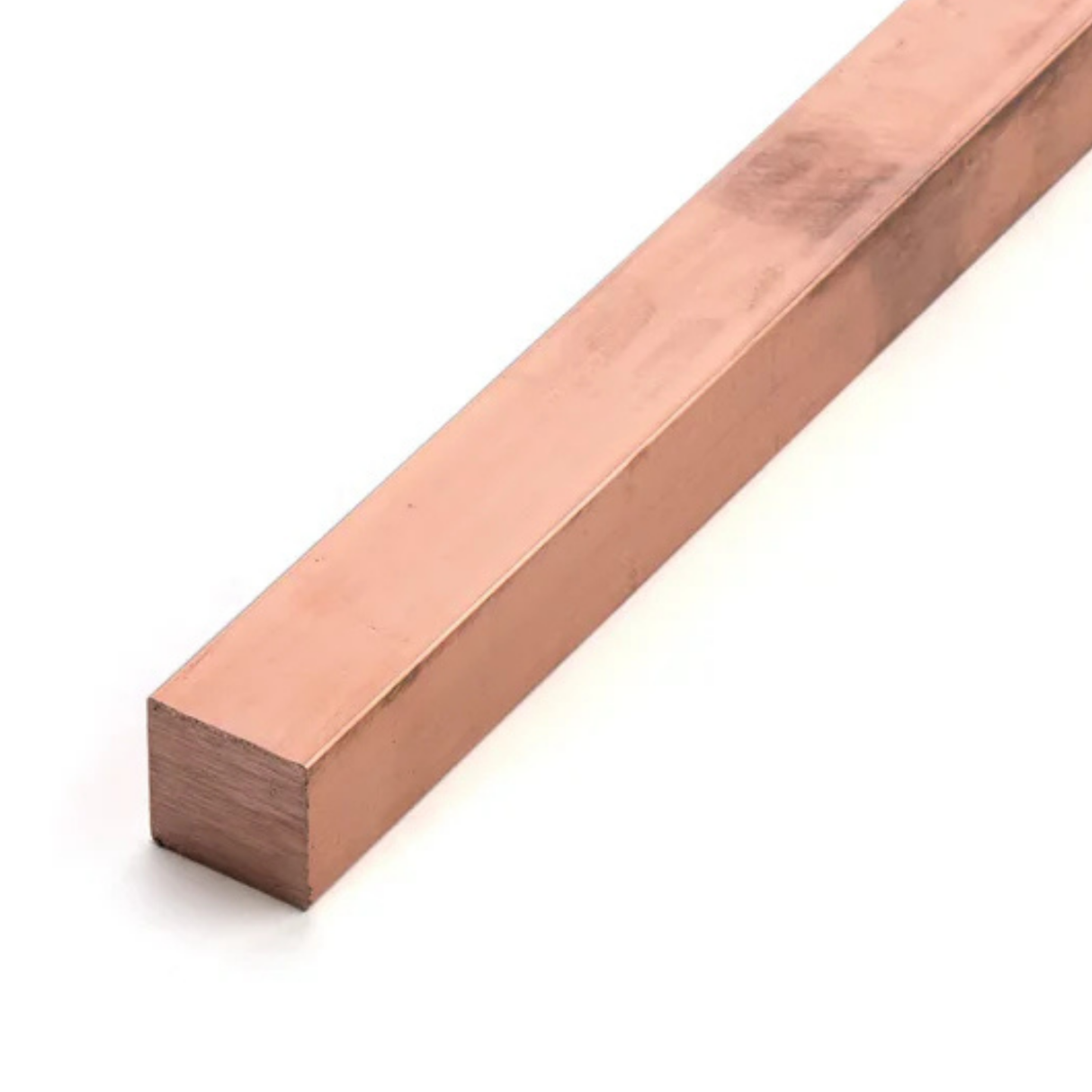

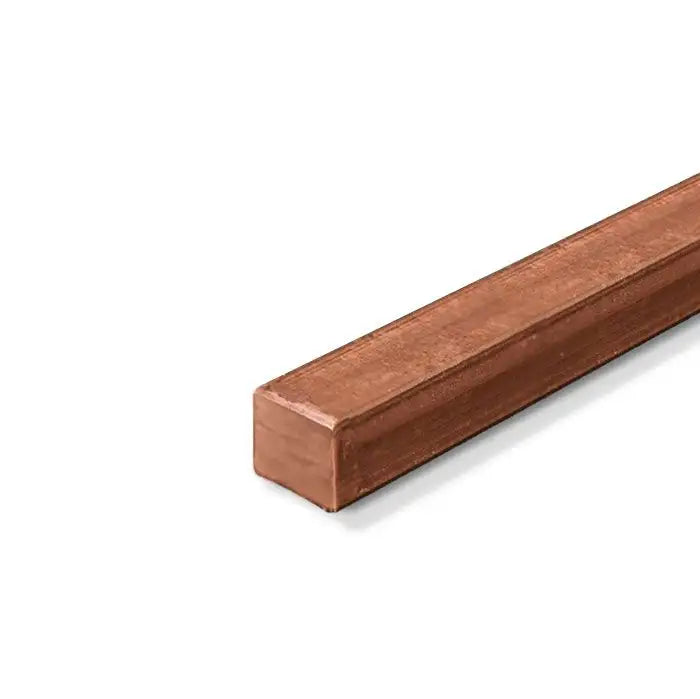

Copper Square Bar 1/2" C110

$19.72 for 12"
Height1/2"
MaterialCopper
GradeC110
Final discount, tax, and shipping calculated at checkout
1 Choose Your Length Enter your cut length
in
Quarter-inch increments. Min: 1", Max: 96"
0"24"48"72"96"
2 Select Quantity How many lengths?
Shipping weight: --
3 Add to Cart Review your order
--
Total
--
Request a quote for cuts longer than 96" · Non-refundable · Tolerance: ±0.125"
Ships next business day Secure checkout Pickup available Serving Canadians since 1997
Visa Mastercard Interac Shop Pay

Description

Copper Square Bar C110 is a high-quality square bar crafted from high-purity C110 copper, renowned for its excellent electrical and thermal conductivity. Ideal for a range of applications—from precision engineering and electrical components to decorative accents—this square bar delivers outstanding performance and aesthetic appeal. Its superior malleability allows for ease of fabrication, while its excellent corrosion resistance ensures long-lasting durability in various environments.
From the counter

About C110 copper

C110 is electrolytic tough pitch copper, ETP, refined to at least 99.90% purity, and it's the standard commercial copper in Canada. Annealed, it conducts at 100-101% IACS, the yardstick the whole conductivity scale is set against, which is why busbar, ground bars, and electrical fittings are made from it. We stock it to ASTM B187 in flat bar, round bar, sheet, square bar, and a bit of hex.

Read the full C110 copper guide
Why is busbar made from C110 copper?
Because busbar is a conductivity job and C110 is the conductivity metal. It carries maximum current, drills and bolts cleanly, and takes a solid joint. We supply the bar to the cross-section and length you spec; size the bus to the Canadian Electrical Code with your engineer.
Can you torch or braze C110 copper?
Yes, but keep the flame neutral, not fuel-rich. Tough pitch copper can suffer hydrogen embrittlement if you heat it hard in a fuel-rich flame, which turns it brittle for good. Work quick, and lean to silver solder over high-temp brazing where the joint allows.
Not enough in stock? Call us referencing part #4281. We only show partial inventory online.
HEIGHT
Specifications
MaterialCopper
Grade/AlloyC110
ShapeSquare Bar
Height0.5 in
Max Length96 in
Weight0.97 lb/ft
MTRAvailable Upon Request
Characteristics
WeldabilityGood
MachiningGood
Bending/FormingExcellent
Wear ResistanceFair
CorrosionExcellent
